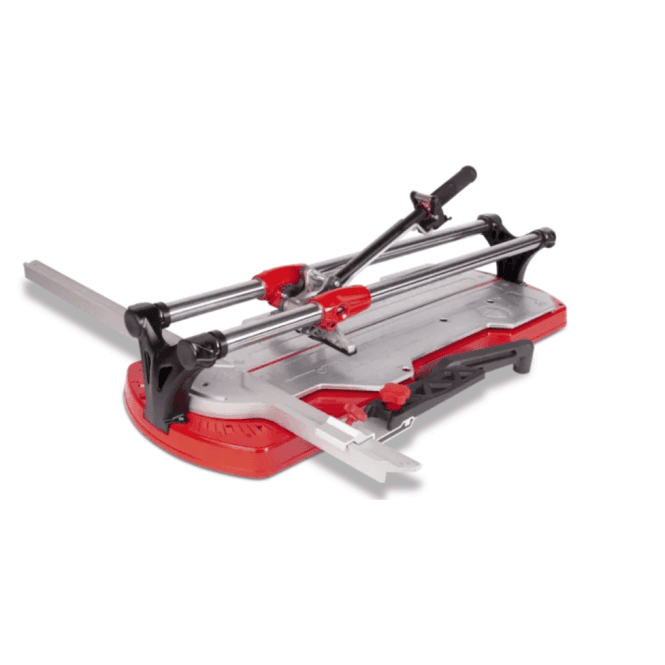

Rubi TX-1250 Max Tile Cutter

The TX-MAX range of professional manual cutters are perfect for intensive cutting of all types of ceramic tiles. Thanks to its high-performance multi-point separator and its rotating square system, the TX-MAX models allow easy and quick execution of angular cuts (from 0º to 45º) especially on porcelain stoneware tiles. Its great separation power (up to 1200 kg) allows the TX-MAX cutters to have excellent performance with extruded stoneware.

The 30mm diameter tubular steel guides and the head with extra-long aluminium slides provide impressive structural robustness, making the most of the models with the highest cutting capacity (TX-1020 MAX and TX-1250 MAX).

The advanced position of the roller increases visibility during scratching and separation, and the gripper incorporates a removable protector, which allows you to work on the most delicate surfaces without the risk of leaving marks. The separator mechanism allows for one-handed use, making it easy to lock and unlock the detent using a ratchet and trigger system.

This system increases working performance, both in thin and thick materials (from 3 to 21mm without the protector, and up to 19 with the anti-mark protector that includes the footrest). As a complement to the floating table system, models 710 and 1020 are equipped with two additional side arms, to increase the support surface with large format tiles. The 1250 model has 4 arms (two on each side).
